Acoustic Treatment

If you're serious about your recording studio, mixing studio or home cinemas, then you need to pay attention to the acoustic properties of your space. A poorly treated room can lead to problematic reflections, standing waves, and other issues that can negatively impact your sound quality. Fortunately, with the right knowledge and equipment, you can improve your room's acoustics and make it sound like a professional recording, mixing or home theatre space. In this article, we'll cover everything you need to know about acoustic treatment and how to get started.

Acoustic treatment is the process of improving the sound quality of a room by controlling its acoustic properties. The goal of acoustic treatment is to create a neutral and balanced listening environment that allows you to accurately hear and mix music. This is achieved by minimizing the negative effects of reflections, resonances, and standing waves. Acoustic treatment is done by adding absorptive, reflective, and diffusive materials to the room's surfaces.

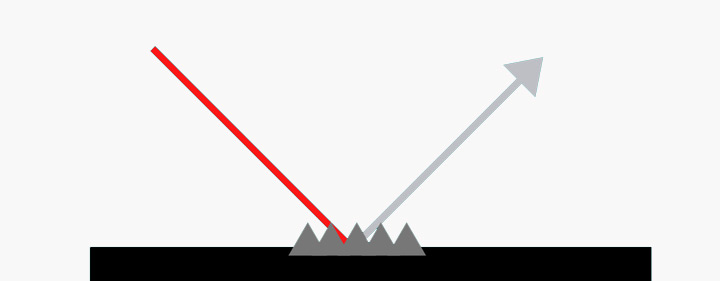

Absorption is the process of reducing sound reflections by using materials that absorb sound waves. This helps to control standing waves and resonances that can cause frequency buildup and uneven sound distribution. Absorption materials include foam panels, fiberglass, rock wool, and other porous materials.

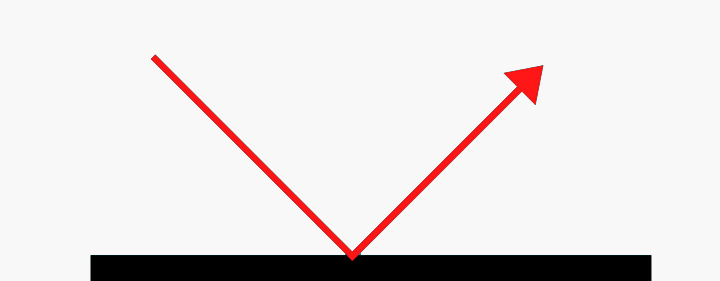

Reflection is the process of redirecting sound waves away from the listener's ears. This is done by using reflective surfaces such as walls, ceilings, and floors. Reflection can be useful in controlling the sound energy in a room and can help to create a more balanced sound environment.

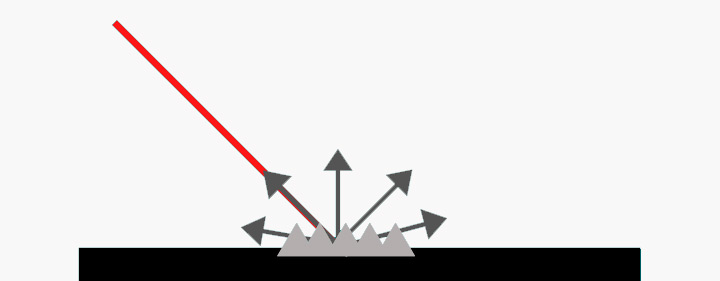

Diffusion is the process of scattering sound waves in different directions. This helps to reduce the negative effects of reflections without completely eliminating them. Diffusive materials include diffuser panels, slat walls, and other patterned surfaces.

Combining these approaches can lead to a more effective acoustic treatment strategy.

There are several types of acoustic treatment that you can use to improve the sound quality of your home studio. These include:

Bass traps are designed to absorb low-frequency sound waves that tend to accumulate in corners and other areas of the room. Bass traps are essential in controlling standing waves and can help to create a more balanced bass response.

Acoustic panels are designed to absorb mid and high-frequency sound waves. They are useful in controlling reflections and echoes that can cause comb filtering and other artifacts. Acoustic panels can be placed on walls, ceilings, and other surfaces in the room.

Diffusers are designed to scatter sound waves in different directions. They are useful in controlling late reflections that can cause smearing and other issues. Diffusers can be placed on walls, ceilings, and other surfaces in the room.

Acoustic curtains are designed to absorb sound waves and can be hung on windows and doors to reduce sound transmission.

Room-in-a-Box is a complete acoustic treatment solution that includes bass traps, acoustic panels, and diffusers. They are designed to be easy to install and can provide a significant improvement in sound quality.

Acoustic treatment is not a one-size-fits-all solution. Each room is unique, and the type of treatment you need will depend on the size, shape, and construction of the space. However, here are some basic steps you can take to get started:

Before you start adding acoustic treatment, it's important to understand the acoustics of your room. Every room has unique acoustic properties, and you need to know what you're dealing with to effectively improve the sound.

You can use measurement tools like a sound level meter or room analyzer software to measure the frequency response and reverberation time of your room. This will give you a better idea of where to place your acoustic treatment.

Bass frequencies are the hardest to control and can cause the most problems in your recordings and mixes. So it's a good idea to start with bass traps.

As mentioned earlier, bass traps are acoustic absorbers designed to prevent problematic reflections from low frequencies. They're shaped like triangular prisms and placed in the corners of the room where bass frequencies build up.

There are different types of bass traps, including membrane traps, panel traps, and tube traps.

After you've installed bass traps, it's time to add broadband absorbers. These are designed to absorb mid and high frequencies that bounce off walls, ceilings, and floors.

Acoustic panels are the most common type of broadband absorbers. They're typically made of a wooden frame filled with insulation material like fiberglass or mineral wool. They can be covered with fabric or other materials to make them more visually appealing.

When installing acoustic panels, focus on the first reflection points in your room. These are the points where sound reflects directly from the speakers to your ears. By treating these points, you can improve the clarity and accuracy of what you hear.

Finally, add diffusers to your room. These are designed to scatter sound waves in different directions, which can help create a more natural and spacious sound.

Diffusers come in different shapes and sizes, with different scattering patterns.

When installing diffusers, focus on areas where late reflections occur. These are reflections that bounce off walls, ceilings, and floors multiple times before reaching your ears. By scattering these reflections, you can create a more natural and immersive sound.

Once you've installed your acoustic treatment, it's important to experiment and adjust as needed. Play music or test tones and listen for any problem areas. You may need to add or move treatment to improve the sound.

Remember that acoustic treatment is not a one-size-fits-all solution. Every room is unique, and you need to customize your treatment to your specific space and needs.

Acoustic treatment is essential for creating a high-quality recording and mixing environment. It can help control reflections, reduce unwanted frequencies, and create a more natural and accurate sound.

By following the steps outlined in this article, you can effectively treat your room and improve the sound of your recordings and mixes.
